Bellows: stiffeners

200 stiffeners are ready

This was the biggest work with the bellows

Next, drawing stuff to the sheets with white pencil, and then lots of glue

ps. also ends of the stiffeners must be cut to 45c angle....... 400 of them... fuck this :D

Bellows, part 1 done

READY

There are strips.. a bit more work with scissors and we're ready to build some bellows

..the drums... in the deep..

Can't cut them all once, my wrist aches...  total of 100 meters of polypropylene to be cut... it's so painful...

Bellows pain!! :)

Previous picture was about plans, this is about pains.

I'm now confronting a problem of hard work, cutting the stuff was not so fun at all and it requires a lot of strength to be used so we'll see how much of this shit I'm gonna ... rraargh

Plans for bellows

My evil plot of building the bellows is materializing on every breath you take

I made a plan so accurate that you can give it to a sophisticated machine in a factory and you get billion of these bellows

Well it's only a plan of principles; the decisions of the Z or D will be made when I have taken over the kitchen table with my bellows stuff

Ready to build BELLOWS

It was just amazing... on my way home from university, I decided to do a little round in a little town.. there was this fabric store, built in an old, red-bricked factory.

And there was this perfect darkening fabric and they sold a "scrap piece" (230cm x 145cm ?!) with only 20 euros.

Of course, I immediatily bought also glue.

We now have everything we need to build the bellows. Maybe I start doing something tomorrow.

Pics

I painted these pieces today. It just happened.. they're black now

The sheet of the stiffener material is quite big (it's on a bed and the piano is 88). You can see throught it but there's still cover plastic. Gotta cut it soon..and again, in your hands, it FEELS expensive, but it was not very...

Made some planning of the strips in 3D, but I eventually decided to do it the same way I did my first bellows, it works fine and looks OK as long as I do this new one with way more accuracy.. NOT gonna cut 5 different type of strips etc. There will be only one type of strips. There will be no room for accidents or my ADHD.



The hanger device: ready!

First: the strip material I previously wrote about. It sure is great. You can cut it with scissors. Fantastic. Soon I'll start cutting; the bellows are lacking only the darkening fabric and enough glue.

Went out and finished the hanger device.

You see how rusty and shitty metal transform into shiny pieces

 Then they transform into a hanger device. It's so funny to use that word - hanger device. What a stupid term I have made.

 The "device" in action. I'm pleased to it. It's sturdy and pretty fast to adjust. Knobs aren't supposed to be that long, there's gonna be shorter ones. I'm not sure if there will be 4 of them, I can try it with 2.

Also, I decided to paint the rails and the hanger device matt black, should make them look prettier. That shiny look of sanded metal won't last long.

Strip material found!!

Please forgive me, I get exited and write all sort of things in this "English" of mine

I found material for bellows' strips!

Earlier, I was talking about "Yeeah it's 0.28mm, yeah it's good, yeah is it too thick" .... bullshit. This polypropylene is 1mm thick.. the sheet's 2.5m3, prizing 16 euros  / m3 so this stuff was, maybe expensive, but I think it is CHEAP.

I'm now really into making bellows that last for LONG time. I don't know how long; is it 5 years, 10, 20, 50 .. ?! No idea. But using polypropylene as strips, it should be resistant for moisture; during years, I believe moisture may cause some damage if paper or paper-related materials are used.. this is only me thinking, of course. So using plastic, that is really elastic, the strips are NOT the weakest part of the bellows. Perhaps the fabric will start to crack in the corners.

I really cant make this sheet to crack, even hammering it won't do anything, and you can freely bend it, but as I believe, inside the bellows, between 2 layers of fabric, glued together, it MUST be rigid. I can now make the strips thinner, ... previously I planned that their width would be 3 cm, but perhaps it could be 2.. 3cm would mean total thickness of the strips, when bellows are collapsed, simply 30mm + fabrics; and 2 cm would mean 5cm + fabrics, so these are not bad..

The hanger device

It's "hanger device" since the camera "hangs" from it - is there a problem?



Glue had dried in the knobs. Works fine

I started planning the hanger device. We needed something to act as an axle.. I decided to make a PROTOTYPE, so beware, the quality is NOT GOOD, but we had to see how it works before applying tons of time to it

 Looking good so far. Btw, it doesn't work that way: you just roll the nuts in the thread and then weld the nuts to somewhere. There's gonna be some tensions and heat etc so the thread will kinda be stuck there. Don't know what's the SMART way of doing this sort of thing, but I ended up with the stucked thread and violence

 The measures are good enough for PROTOTYPE

It is so.. ugly

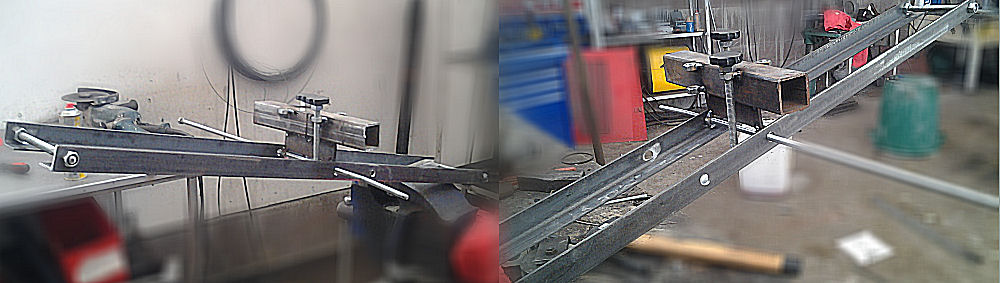

But as we see, it works.. kinda surprising. The black knobbed bolts are M10, it's enough. The real version will have total of 8 nuts welded to the iron block to make it last longer. Only 4 would end up with bolts bending etc. Also longer bolts will allow larger rotation for the rails. But basicly, it works. This was the part I suspected the most, but seems to be OK. Also, it's very rigid!? Didn't believe before I tried..

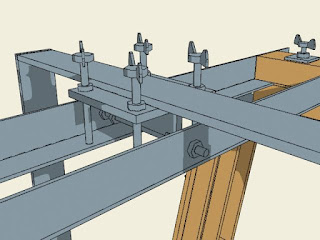

PS one more pic: the 3D pic of the device, where you should see the idea of the thing. Pretty simple, and like I wanted: DIFFERENT
